Description
BATTLEARMS – BAD-EPS Enhanced Takedown & Pivot Pin Set (AR15/M16/M4/AR9)
- Item: BAD-EPS
- SKU: BAD-EPS
- UPC: 810033780394
- Platform Compatibility: AR15 / M16 / M4 / AR9

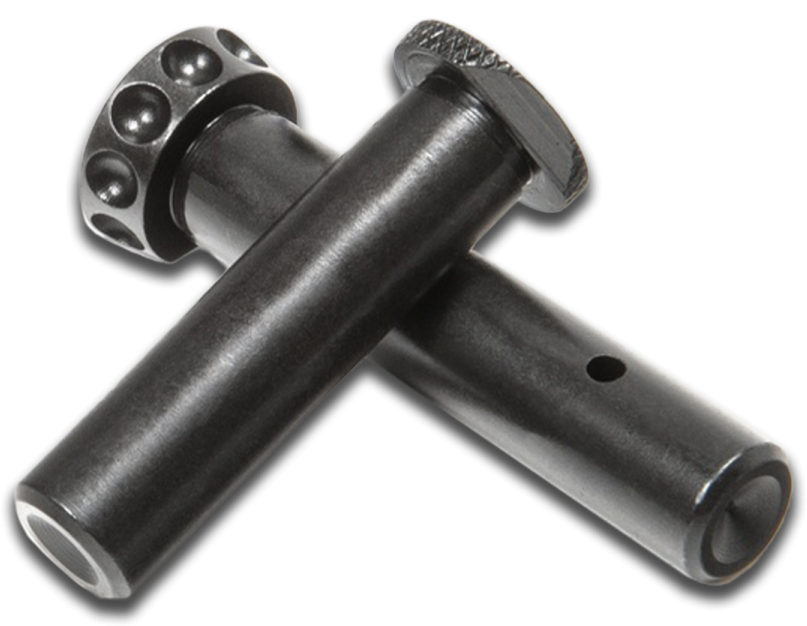

The BATTLEARMS BAD-EPS® Enhanced Takedown and Pivot Pin Set upgrades one of the most frequently handled areas of an AR-pattern rifle: your front pivot and rear takedown pins. Designed to fit standard mil-spec receivers, the BAD-EPS improves grip, control, and usability without bulky oversized heads—while staying low-profile and out of the way during operation.
Key Features
- Mil-Spec Fit: Compatible with AR15/M16/M4 lower receivers using mil-spec .250" diameter front pivot and rear takedown pin holes.
- Patent-Pending Head Designs: Enhanced pin head geometry provides a more secure gripping surface and increased pull strength—without going oversized.
- Low-Profile Pin Heads: Lower profile than standard mil-spec pin heads for reduced snag/drag and a cleaner, streamlined feel.
- Ambidextrous Safety Friendly: Enhanced takedown pin head design helps prevent interference with right-side ambi safety selector levers.
- Extended Pin Tips: Pin tips are extended +0.030" over mil-spec to make starting/pushing pins from the left side easier, without excessive protrusion.
- Bullet Tip Guide: Cone-shaped recess at both pin tips helps prevent tool or bullet tip slipping and reduces the chance of scratching or damaging the receiver.
- Patent-Pending EZ Guide Channel: Added guide channel assists installation of the enhanced pivot pin—helping reduce lost detents and springs.
What’s Included
- (1) BAD-ETP (Enhanced Takedown Pin)
- (1) BAD-EPP (Enhanced Pivot Pin)
- (2) KNS hardened stainless steel detents
- (2) 17-7 nickel plated stainless steel pin springs
Made in the U.S.A.
Specifications are subject to change without notice.
Additional Details
- SKU:
- BAD-EPS
- UPC:
- 810033780394
- Condition:
- New
- Width:
- 4.00 (in)
- Height:
- 6.00 (in)
- Depth:
- 4.00 (in)
